Easy Install China Brand Safety Forklift Safety Cage/Working Platform

Basic Info.

Model NO.	THYH-PSC-110
Standard	Nonstandard
Transport Package	Cartons and Pallets
Specification	L: 36inch*W36inch*H37inch
Trademark	THYH
Origin	Qingdao
Production Capacity	3000PCS/Month

Product Description

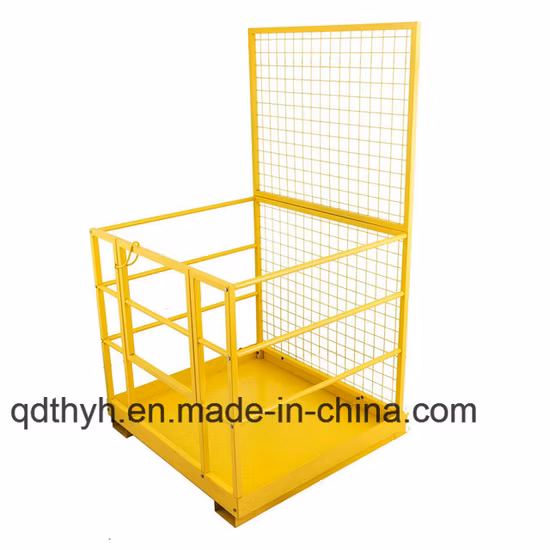

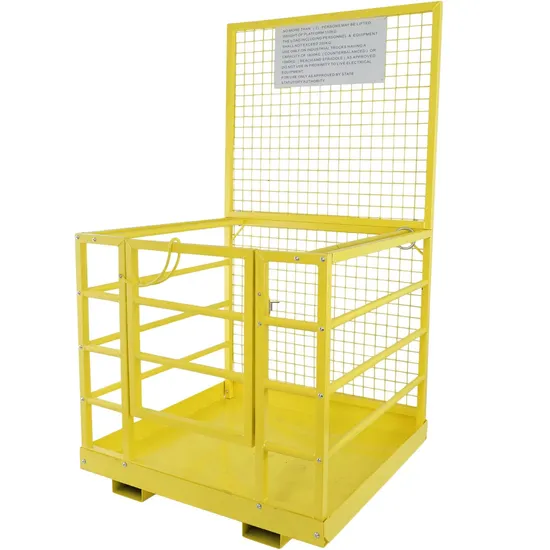

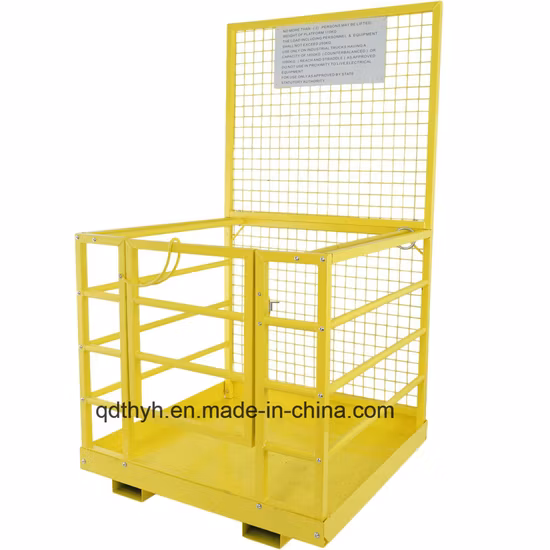

Forklift Safety Cage / Forklift Work Platform

All QINGDAO TIANHUA YIHE work platform man cages are designed and manufactured in accordance with factory's test standard, and are supplied with our factory's load test certificate of approval, instruction drawing. Fork pockets fitted for transport purposed only. Personnel cages can be supplied with chain and are painted safety yellow.

WP-N two person man cage

This cage can also be manufactured to suit First Aid Rescue by fitting an outward opening gate. Please specify when ordering.

Type	Maximum capacity	Safe Working Load	Fork Pocket Size	Fork Pocket Centres	Surface Finish
WP-N	2 people	250kg	160 x 60mm	640mm	galvanized
WP-MS	2 people with full mesh	250kg	160 x 65mm	640mm	galvanized
WP-C	2 people with mesh roof	250kg	165 x 65mm	775mm	painted
WP-C2	4 people with mesh roof	500kg	245 x 65mm	950mm	painted
WP-C11	2 people no roof	250kg	165 x 65mm	775mm	painted
WP-C12	4 people, without roof	500kg	245 x 65mm	950mm	painted
WP-C4	1 person, without roof	250kg	165 x 65mm	555mm	painted
WP-C8	1 person with mesh roof	250kg	165 x 65mm	555mm	painted

Features of Working platform:
- Mesh Safety Screen
- Internal handrail
- Full length pallet fork pockets
- Spring loaded inward closing door
- Automatic Drop Lock
- Yellow Powder Coated Finish
Specifications of Working platform
- Height: 82"
- Length: 43"
- Width: 45"
- Fork Slots: 6.25" x 2.5"
- Capacity: 1,200 lbs.
- Weight: 255 LBS
- Material: Steel

Advantage of Working platform

• Lightweight only in kilos, not performance!
• Very robust
• Easy to use
• Yellow powder coated
• China made

The FORKLIFT WORK PLATFORM has been designed with safety in mind and to carry out those maintenance tasks of short duration and occasional usage where safe working at height is paramount. It incorporates newly designed one piece sides for extra strength and rigidity and ease of assembly.

Quick hitch bracket for telehandler attachment:

Four person cage, with mesh roof:
